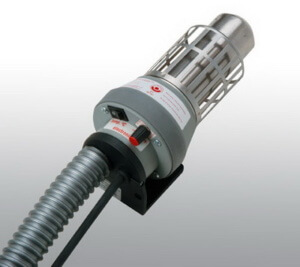

Industrial air heater 3000-E for continuous operation in production processes

The industrial air heater type 3000-E is the optimum air heater for production processes.

Our air heaters are durable and suitable for continuous operation, for example in production machines.

The type 3000-E air heater is available in two versions:

as a switching device with 3 heating levels in 230 V alternating current and
as electronic version with infinitely variable temperature setting in 230 V alternating current or 400 V three-phase current. The heating power is 3000 W and reaches a maximum temperature of 700 °C.

The air heater type 3000-E is connected to an external air supply and is therefore suitable for absolute continuous operation. Air heaters are mounted on conveyor belts and in machines. They are also used in heating ducts and on various devices. If required, the air outlet can be modified with various clip-on nozzles.

Technical data

Voltage: 230 V – 400 V
Frequency range: 50Hz – 60Hz
Power: 3000W
Air volume:,500 – 1500 I/min
Max. Air pressure: 1 bar
Max. Temperature: 700°C
Max. Ambient temperature: 65°C

Min. Supply air temperature: 0°C
Max. Supply air temperature: 65°C
Noise emission level: < 70dB
Protection class: II /
Weight: 1,000 kg

Areas of application

Packaging industry
Mechanical engineering
Conveyor belt and conveyor technology
Drying process
Pharmaceutical industry
Sterilization process
Food industry

Shrink film
Wine and spirits bottling plants
Coating process
Laminating

Technical data

Tension	230 V – 400 V
Power	3000 W
Temperature	up to 700 °C
Air volume	500 – 1,500 l/min (depending on nozzle)
Air supply	external (blower, side channel compressor or compressor)
Weight	1.0 kg
Conformity marking	CE; EAC
Protection class	II

Air heaters for plastics processors are a special type of heating device used in the plastics industry to heat air and then use it in the processing processes for plastics:

How it works:

An air heater heats the ambient air, which is then used in specific applications in the plastics processing process.
This process serves to control and regulate the temperature of tools, molds or materials.

Features:

Temperature control:
The devices have precise temperature controls to ensure that the air is heated to the desired temperature.
Air volume flow:
Depending on the requirements of plastics processing, the air heater can provide the quantity of heated air that is required.
Safety functions:
High-quality air heaters are equipped with safety functions, such as overheating protection and emergency stop switches, to ensure safe operating conditions.
Energy efficiency:
Modern air heaters are often energy-efficient and can carry out the heating of the air with minimal energy losses.
Robust construction:
The construction of the air heater is designed for the requirements of industrial use and can withstand the demanding conditions in plastics processing plants.

Applications:

Air heaters for plastics processors are used in various phases of the plastics processing process, including:

Drying of plastic granulates:
Air is heated to remove moisture from plastic granulates before they enter the injection molding process or extrusion process.
Temperature control in injection molding machines:
Air heaters are used to bring tools and molds in injection molding machines to the required temperature.
Preheating of plastic films:
In applications where plastic films are formed or processed, an air heater can help to increase the temperature of the film.
Process heat in extrusion plants:
Air heaters support the extrusion process by maintaining the required process temperature.

Air heaters are crucial in plastics processing to ensure precise temperature control, which improves the quality and efficiency of production processes.
