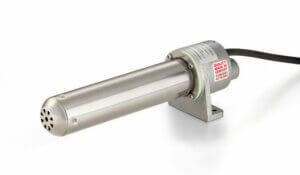

Industrial air heater 5000

The industrial air heater type 5000 generates constant hot air in continuous operation.

The compact and lightweight air heater can be integrated into professional production processes despite its high hot air output.

The type 5000 air heater can be used in many different ways.

Among other things, the air heaters are used on conveyor belts and in machines.

The hot air generated is used for activation, shrinking, drying and shaping.

The air heaters are switchable in 3 stages and can be equipped with different heating outputs in 230V or 400V 3 alternating current up to a maximum of 650 °C.

Type 5000 requires an external air supply with blower, side channel blower or compressor. Depending on the nozzle, the required air volume is 500 to 1500 liters/min.

The air flow can be concentrated and modified with various attachable nozzles, so that individual solutions can be achieved.

Technical data

Voltage: 230 V – 400 V
Frequency range: 50Hz – 60Hz
Power: 3000W – 7500W
Air volume: 500 – 1500 I/min
Max. Air pressure: 1 bar
Max. Temperature: 700°C
Max. Ambient temperature: 65°C
Min. Supply air temperature: 0°C
Max. Supply air temperature: 65°C
Noise emission level: < 70dB
Protection class: I /
Weight: 1,400 kg

Areas of application

Packaging industry
Mechanical engineering
Conveyor belt and conveyor technology
Drying process
Pharmaceutical industry
Sterilization process
Food industry

Shrink film
Wine and spirits bottling plants
Coating process
Laminating

Air heaters for plastics processors are a special type of heating device used in the plastics industry to heat air and then use it in the processing of plastics:

How it works:

An air heater heats the ambient air, which is then used in specific applications in the plastics processing process.
This process is used to control and regulate the temperature of tools, molds or materials.

Features:

Temperature control:
The appliances have precise temperature controls to ensure that the air is heated to the desired temperature.
Air volume flow:
Depending on the requirements of plastics processing, the air heater can provide the amount of heated air that is needed.
Security functions:
High-quality air heaters are equipped with safety functions such as overheating protection and emergency stop switches to ensure safe operating conditions.
Energy efficiency:
Modern air heaters are often energy-efficient and can heat the air with minimal energy loss.
Robust construction:
The construction of the air heater is designed to meet the requirements of industrial use and can withstand the demanding conditions in plastics processing plants.

Applications:

Air heaters for plastics processors are used in various phases of the plastics processing process, including:

Drying of plastic pellets:
Air is heated to remove moisture from plastic pellets before they enter the injection molding or extrusion process.
Temperature control in injection molding machines:
Air heaters are used to heat tools and molds in injection molding machines to the required temperature.
Preheating of plastic films:
In applications where plastic films are formed or processed, an air heater can help to increase the temperature of the film.
Process heat in extrusion systems:
Air heaters support the extrusion process by maintaining the required process temperature.

Air heaters are crucial in plastics processing to ensure precise temperature control, which improves the quality and efficiency of production processes.
