Hot bending of plastic sheets is a notoriously tricky subject, as stresses are often frozen during the bending process and subsequent cooling.
We supply the following versions:

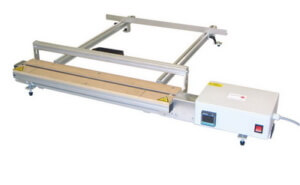

Table heating element single/both Heating

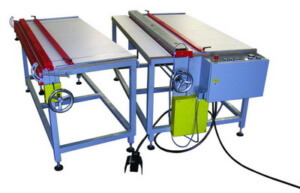

Bending machines or panel benders
In addition to aspects to prevent premature panel breakage, a visually appealing bend and a durable and clean bevel weld seam are also important.
This is achieved by using fully electronic control and regulation of the heaters in conjunction with precise guidance of the respective heating elements.
Our products range from simple and inexpensive table heating strips for occasional work to all-round machines and semi-automatic and fully automatic folding machines which are used, for example, to produce ventilation ducts.
Certain machines are also suitable for the production of U-profiles (cover profile for load-bearing steel reinforcements in tank construction).
PE-HD (PE 63/ 80/ 100), PE-HMW, PE- UHMW, PP-H/-B/-R, PVC-U, PVC foam, PVDF, PS, PET, PMMA and PC can be processed as sheet materials .
We supply appliances with non-contact radiant heating, with contact heating or with single-sink heating blade.
Non-contact heating with bottom heating or bottom and top heating is ideal for bending transparent materials such as PVC-U, PMMA, PC and PET.
Although contact heaters heat up faster, they always leave marks on the panel surface and are generally used with technical materials.

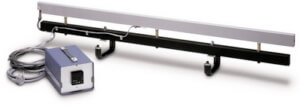

Countersunk heating swords are used for edge welding PE, PP and PVDF sheets in order to achieve the sharpest possible bend with simultaneous welding.
The possible working widths range from 0.5 to 4 m.
Depending on the machine/device type, bending capacities of0.3 to 30 mm are possible on panel thicknesses.
