Electric pipe band saws for plastic pipes Ø 315 mm – 1000 mm

Pipe band saws represent high-performance tools in machining that are specially designed for the precise cutting of pipes.

With their ability to produce clean and precise cuts in various materials, pipe band saws are indispensable equipment in workshops, production plants and processing companies.

Ideal forprecise cutting of pipes for efficient processing.

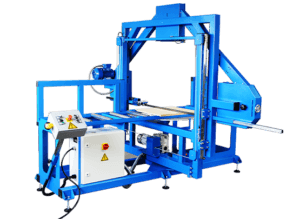

Mod. BSM 1000 for plastic pipes Ø 315 mm – 1000 mm

Description of the sawing machine BSM 1000:

The sawing machine is equipped with a variety of functions that enable precise and efficient processing of workpieces:

Double-sided saw bow bearing enables angle cuts from 0° to 45° to both sides.
The miter on both sides enables the production of T-pieces and segments with high precision.
Precision guides ensure an exact cutting path and high cutting quality.
The feed is infinitely adjustable and is operated by an electric drive, which enables a smooth and controlled feed movement.
A cutting depth limiter ensures additional safety and precision when cutting.
An angle scale on the front makes it easy to read the degree setting and determine the exact angle.
A workpiece support provides support and stability when cutting workpieces.
The laser cutting detection enables precise alignment and positioning of the workpiece.

Options:

The sawing machine can be equipped with pneumatic clamping to hold workpieces securely and firmly in place, which increases productivity and safety.

Technical data

	Dimensions	Transport dimensions
Length:	3800 mm	3800 mm
Width:	3700 mm	2450 mm
Height:	3750 mm	2250 mm
Weight:	980 kg

Features and functions of pipe band saws:

Properties:

Bandsaw blade: An endless bandsaw specially developed for cutting pipes and working in a closed circuit.
Cutting speed: Pipe band saws offer variable cutting speeds to adapt to different materials and requirements.
Inclinable cutting heads: Some models have tilting cutting heads that make it possible to perform precise miter cuts for various applications.
Material feed system: Automated material feed systems ensure an even and controlled feed of the pipes to be cut.
Cooling system:An integrated cooling system ensures that the bandsaw blade and the workpiece are adequately cooled during the cutting process to extend the service life of the saw blade.

Functions:

Precise cuts:
Pipe band saws enable precise and smooth cuts, which is particularly important when exact dimensions and surface qualities are required.
Efficiency:
Thanks to the continuous movement of the band saw blade, pipe band saws enable efficient processing of pipes with minimal material loss.
Versatility:
With the ability to cut different materials, pipe band saws are extremely versatile in various industries.
Miter cuts:
Tiltable cutting heads enable precise cutting of miters, which is particularly necessary in applications where angular precision is important.
Repeatability:
Pipe band saws guarantee a high level of repeatability, ensuring consistent cutting quality and dimensional accuracy across a wide range of workpieces.

Applications:

Metal construction and design:
In the metal construction industry, pipe band saws are used for the precise cutting of pipes for the manufacture of components, frames and structures.
Pipe production:
In pipe production, pipe band saws are used to produce pipe sections with high precision and efficiency.
Mechanical engineering:
In mechanical engineering, tube band saws are used in the manufacture of components for machines and equipment.
Metal processing and workshops:
Workshops use pipe band saws for a variety of metalworking projects, from small prototypes to larger fabrication jobs.
energy industry:
In energy production, particularly in the manufacture of pipelines, pipe band saws contribute to the precise preparation of pipe sections.

Pipe band saws are indispensable tools in machining, playing a key role in the production of precise pipe cuts thanks to their precision, efficiency and versatility
