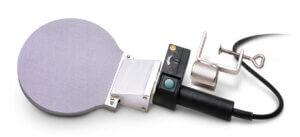

Hand welding mirror in round design for butt welding

The round hand welding mirrors for butt welding are versatile and can be used for a wide range of materials and applications.

They are available in different sizes and offer numerous advantages such as

Temperature control:

Our appliances control the temperature via a thermostat or electronics. An indicator light integrated in the handle shows the heating interval.

Non-stick coating:

All heating elements for direct material processing have a non-stick PFTE coating to ensure easy handling.

Workbench bracket:

A holder for securely placing the device on the workbench is included in the scope of delivery.

Advantages:

Non-stick coating:
For easy cleaning and better processing.
Fully equipped:
With connection cable and mains plug.
Reliable temperature control:
Thermostat or electronic control.
Control lamp in the handle:
Displays the heating interval.
Electronic control:
Temperature setting and monitoring in accordance with DVS 2208 for appliances with electronics.
Workbench bracket:
Included for secure attachment to the workbench.
Various voltages:
Also available in 115 volts, other voltages on request.

These heating elements offer a reliable and efficient solution for butt welding and are ideal for professional applications in various sectors.

Available models:

Model	Heating mirror-⌀ (mm)	Weight (kg)	Total connected load (W)	Main voltage (V) according to EN 60204	Regulation	Temperature setting range (°C)
HSPR 90 T	90	1,5	600	230	Thermostat	50 – 300
HSPR 90 E	90	1,5			Electronics	130 – 300
HSPR 120 T	120	1,8			Thermostat	50 – 300
HSPR 120 E	120	1,8			Electronics	130 – 300
HSPR 200 T	200	2,5	800		Thermostat	50 – 300
HSPR 200 E	200	2,5	800		Electronics	130 – 300
HSPR 250 T	250	3,9	1.000		Thermostat	50 – 300
HSPR 250 E	250	3,9	1.000		Electronics	130 – 300
HSPR 300 T	320	4,5	1.500		Thermostat	50 – 300
HSPR 300 E	320	4,5	1.500		Electronics	130 – 300

Accessories for heating elements for butt welding in round design

	Parking rack for: HSPR 90, HSPR 120, HSPR 250, HSPR 300	Carrying case for: HSPR 90, HSPR 120, HSPR 200	Carrying case for: HSPR 250, HSPR 300
Weight (kg)	0,60	3,00	3,90

Data sheets:

Hand welding mirror round.pdf

The welding mirror is a specialized tool used in plastic welding technology to ensure precise control and focusing of the welding heat .

This device allows welders to control the amount of heat applied to the plastic surfaces to achieve uniform fusion and strong welded joints.

Properties of the welding mirror:

Shape and size:
Depending on the application and welding process, welding mirrors can be available in different shapes and sizes, from round mirrors to rectangular mirrors.
Heat-resistant material:
The surface is made of a heat-resistant material that can withstand the high temperatures of plastic welding.
Handle or holder:
The welding mirror is often equipped with a handle or holder to enable convenient handling and positioning during the welding process.

Functions:

Heat focusing:
The welding mirror concentrates the reflected heat onto the plastic surfaces to be welded to ensure uniform heating and fusion.
Temperature control:
By adjusting the angle of inclination, the welding mirror can influence the temperature control and thus the welding conditions.
Precise welding guidance:
Welders can use the mirror to precisely direct the welding heat and thus ensure accurate guidance during the welding process.
Increased efficiency:
The focusing of the heat by the welding mirror contributes to the efficiency of the welding process, as the energy is directed specifically to the welding zone.
Reduction of welding distortions:
By precisely controlling the application of heat, the welding mirror can help to minimize welding distortion and ensure a high-quality welded joint.

The welding mirror is an essential tool in plastic welding technology that helps to produce high-quality welded joints thanks to its ability to precisely control heat.
